To choose cable ties, work through four decisions in order: the length you need for the bundle diameter, the tensile class the load calls for, the material and color for the environment (black UV-rated nylon outdoors, natural nylon indoors, stainless where heat or chemicals rule out plastic), and the pack size that fits how your crew actually consumes them. Get those four right and the brand decision mostly takes care of itself.

This guide is written for electricians, low-voltage installers and facilities maintenance teams buying by the bag or the case rather than the blister pack. Every product named below is in our Cable Ties collection, and every spec quoted comes from that product listing. Where a listing does not state a figure, we say so rather than guess.

Start with the job, not the catalog

Cable ties get bought for very different reasons, and the right tie for one is the wrong tie for another:

  • Panel and harness dressing. Short ties, 4 in to 8 in, in natural or black nylon. Volume is high, so cost per tie and a 1,000-count bag matter more than anything else.
  • Conduit, tray and raceway runs. 8 in to 14 in ties with enough strap to go around multiple cables plus a support. Standard-duty tensile class.
  • Outdoor, rooftop and daylight-exposed plant areas. Black UV-rated nylon. Natural nylon chalks and embrittles under sunlight.
  • Hose, pipe and heavy harness. Long heavy-duty ties, 18 in and up, and sometimes stainless steel.
  • Service benches, test racks, temporary runs. Releasable or reusable ties, or a cut-to-length strap that can be opened and re-closed.
  • Identification. Colored ties for circuit or phase marking, or for separating tenant-installed cable from landlord cable.

Write down which of those your team does most, because that decides where the bulk of your spend should go.

How to choose cable ties: the five specs that matter

1. Length and bundle diameter

Length is the first number on any cable tie listing and the one buyers most often get wrong. The usable strap is shorter than the stated length because the head and the pull tail both use some of it. The rule of thumb is to take the bundle circumference (diameter times 3.14), then add room for the head and a tail you can grip with pliers or a tension tool.

In practical terms, from the lengths stocked here:

  • 4 in: single cables and small harnesses inside enclosures
  • 8 in to 8-1/2 in: the general-purpose size for most panel and branch-circuit work
  • 11 in to 14.5 in: multi-cable bundles, conduit to strut, tray dressing
  • 18 in to 21.2 in: hose, pipe, large harness, bundling to a support

Buying one size up costs very little per tie and avoids the two-ties-joined-end-to-end fix that looks bad on an inspection.

2. Tensile strength (the duty class)

Cable tie tensile strength is the loop load the installed tie carries before failure, usually quoted in pounds. Manufacturers group ties into miniature, intermediate, standard, heavy and extra-heavy classes, and the longer ties in a series are usually also the heavier class because the strap is wider.

Not every listing in our collection states a pound rating, so treat the class, strap width and the manufacturer series name as your guide rather than a number we have not verified. For wire and harnessing, intermediate or standard is normal. For conduit, hose and anything that vibrates, step up a class. Over-specifying is cheap insurance; under-specifying is a callback.

3. Material and color: UV-rated black vs natural nylon

Most of the collection is nylon, which is the right default for general electrical and maintenance work. The color is not cosmetic:

  • Natural (off-white) nylon is the standard indoor tie. It is easy to inspect, easy to mark and is the lowest-cost option in 1,000-count bags.
  • Black nylon is the common choice where ties will be seen, and black ties described as UV-rated or weather-resistant on the listing include a UV stabilizer that extends outdoor life. Do not assume every black tie is UV-rated; check the listing. The Gardner Bender 46-310UVB, for example, is listed as UV Black.
  • Stainless steel ties are for high heat, chemical exposure, washdown areas and anywhere plastic is prohibited. They need a dedicated tension and cut-off tool.
  • Colored nylon (blue, red, green, orange, purple, fluorescent) is used for identification and for separating systems. RETYZ stocks its EVT series in a wide color range in the same length families.

4. Releasable vs standard

A standard tie has a one-way pawl: once tensioned, it is cut off to remove. A releasable tie has a lever or tab that lets you open the head and reuse the tie. Standard ties are cheaper, lower profile and more tamper-resistant, so they stay the default for permanent work.

Releasable ties earn their place on anything you open on a schedule. If you mostly need to open and re-close bundles at a bench or on racked equipment, a cut-to-length polyester strap roll such as the Rip-Tie W-75-1RL-BK does the same job without a bin of single-use ties.

5. Pack size and cost per tie

Cable ties are consumed by the hundred, so pack size drives both unit cost and how often someone has to reorder. The collection runs from 10-packs through 20-packs and 100-packs up to 1,000-count bags from Panduit and Thomas & Betts. Put the 1,000-count bags on the truck for your two or three most-used sizes and keep smaller packs for colors and specialty lengths.

Cable ties compared: real options from the collection

Product Key spec Pack Best for
Panduit PLT2M-M0 Nylon, 8 in, black 1,000 General-purpose panel and conduit work in bulk
Thomas & Betts TY26M Nylon, 11 in, natural 1,000 Multi-cable bundles, indoor tray and raceway

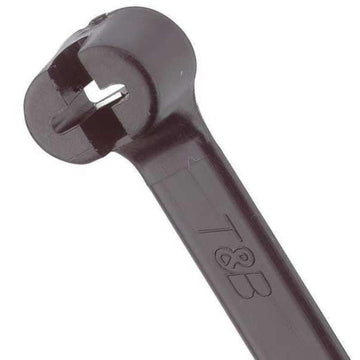

Thomas & Betts TY5272MX Nylon, 8-1/2 in, black 50 Black 8 in class in a small pack for service trucks
Gardner Bender 46-310UVB Nylon, UV black 100 Outdoor and daylight-exposed runs
RETYZ EVT-S08NL-TA Nylon, natural, EVT-S08 series 100 Indoor dressing where ties should be inspectable
RETYZ EVT-S14BK-TA Nylon, black, EVT-S14 series 100 Larger bundles in black
Panduit BT6LH-L0 Nylon, 21.2 in, black 50 Hose, pipe and heavy harness
Rip-Tie W-75-1RL-BK Polyester strap, 1/2 in x 75 ft roll, black 1 roll Bundles that are opened and re-closed often

Length, material, color and count are taken from each listing. Where a RETYZ listing gives the series rather than a length in inches, use the series code (S06, S08, S10, S14) to compare relative sizes within that brand.

Common mistakes electricians and maintenance teams make

  • Buying natural nylon for outdoors. It is the cheapest tie and it is the one that fails on the roof in a couple of seasons. Use a tie listed as UV-rated black outside.
  • Sizing to the bundle instead of the bundle plus support. A tie that fits the cable bundle will not go around the bundle and the strut or J-hook.
  • Using one tie for everything. One 8 in bag covers a lot, but hose, heavy harness and outdoor runs each need their own SKU.
  • Over-tensioning with pliers. Cutting into the insulation jacket is a defect. Use a tension tool on anything with a heavy-duty strap.
  • Ignoring the cut. Flush-cut the tail. A sharp stub at hand height in a panel is a laceration hazard and a sign of sloppy work.
  • Mixing colors by accident. If you use color for identification, write the scheme down and stock each color as a separate line item so a substitution does not break it.

Standardizing cable ties across a facility or fleet

Most shops can cover 90 percent of work with three or four standard SKUs: a natural 1,000-count bag for indoor volume, a black UV-rated tie for outdoor work, one long heavy-duty tie, and either a releasable tie or a strap roll for the service bench. Add colors only where your labeling scheme needs them.

Once the list is set, put the SKUs on a reorder sheet and buy them the same way each time:

  • Use Quick Order to enter part numbers directly instead of browsing, which keeps substitutions out of the order.
  • Open a business account for Net-30 terms and consolidated invoicing across trucks or sites.
  • Ask for a bulk quote when a project needs several cases of one size, or when you are stocking a new site from scratch.

Keep the same brand and series within a size family where you can. Tie heads differ slightly in profile and strap width between manufacturers, and inspectors notice a mixed look on a dressed panel.

Our picks

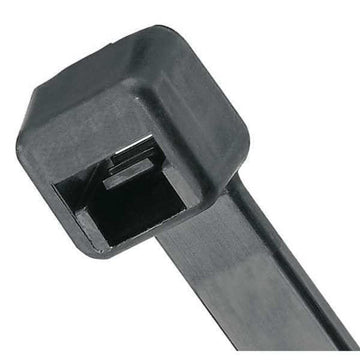

Panduit PLT2M-M0, 8 in black nylon, 1,000 count. This is the bag to put on every truck for panel and branch-circuit work. The Panduit PLT series is a known quantity with electrical inspectors, and the 1,000 count keeps the cost per tie low. View the PLT2M-M0.

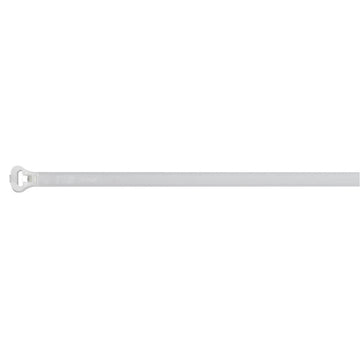

Thomas & Betts TY26M, 11 in natural nylon, 1,000 count. The step up for multi-cable bundles and tray dressing indoors. Natural color for easy inspection, and enough length to go around a bundle plus its support. View the TY26M.

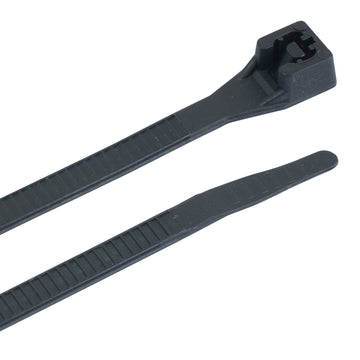

Gardner Bender 46-310UVB, UV black nylon, 100 pack. The listing calls out UV black, which is what you want on rooftops, exterior conduit and in daylight-exposed plant areas. Keep a 100 pack on the truck for outdoor service calls. View the 46-310UVB.

Panduit BT6LH-L0, 21.2 in black nylon, 50 count. For hose, pipe and large harness where an 11 in tie will not reach. Fifty to a pack is enough for most maintenance teams without tying up money in a size used a few times a month. View the BT6LH-L0.

Rip-Tie W-75-1RL-BK, 1/2 in x 75 ft polyester roll. The answer for racks, benches and temporary runs where you open and re-close the same bundle repeatedly. Cut what you need from the roll and skip the pile of snipped ties. View the W-75-1RL-BK.

Browse the full range of lengths, colors and pack sizes in the Cable Ties collection, or jump to Electrical and Fasteners for the rest of the install.

Products in this guide

Frequently asked questions

What length cable tie do I need for my bundle?

Add up the bundle circumference, then allow extra strap for the head and the tail you grip while tensioning. As a working rule, an 8 in tie handles a bundle around 2 in across, an 11 in tie handles roughly 3 in, and 14 in and longer ties are for conduit runs, hose and large harnesses. When in doubt, size up one length rather than down.

Are black cable ties better than natural (white) cable ties?

Not automatically. Black ties sold as UV-rated or weather-resistant contain carbon black that slows sunlight degradation, so they are the right choice outdoors, in daylight-exposed plant areas and on rooftops. Natural nylon is fine indoors, in panels and in conditioned spaces, and is easier to write on and to inspect for cuts.

What does cable tie tensile strength mean?

Tensile strength is the loop load the installed tie will hold before the locking head or strap fails, usually stated in pounds. Lighter-duty ties are typical for wire harnessing and panel dressing, standard-duty for conduit and mixed cable, and heavy-duty for hose, pipe and large bundles. Match the class to the load and vibration, not just the bundle size.

Should maintenance teams use releasable cable ties?

Use releasable or reusable ties where bundles are opened routinely, such as test racks, temporary runs, event cabling and equipment that is serviced on a schedule. Standard one-time ties are cheaper per piece and more tamper-resistant, so they remain the default for permanent installations. Many shops stock both and keep the reusable option near the service bench.
